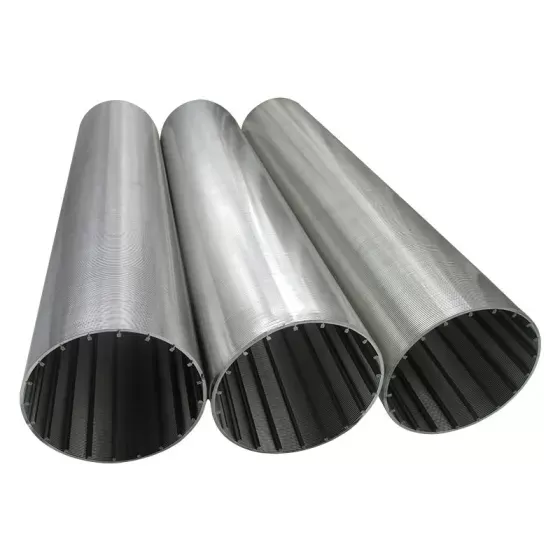

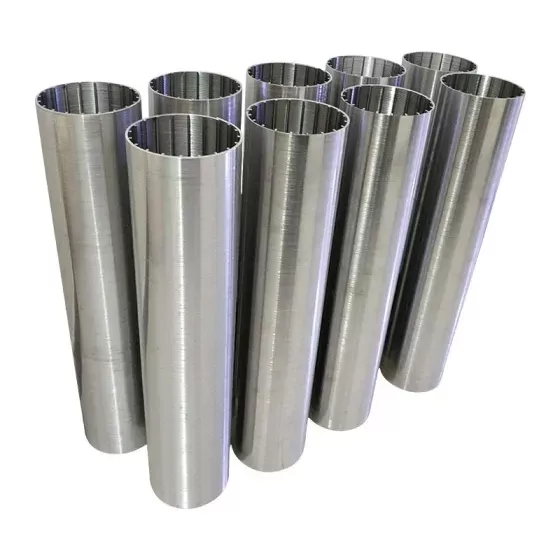

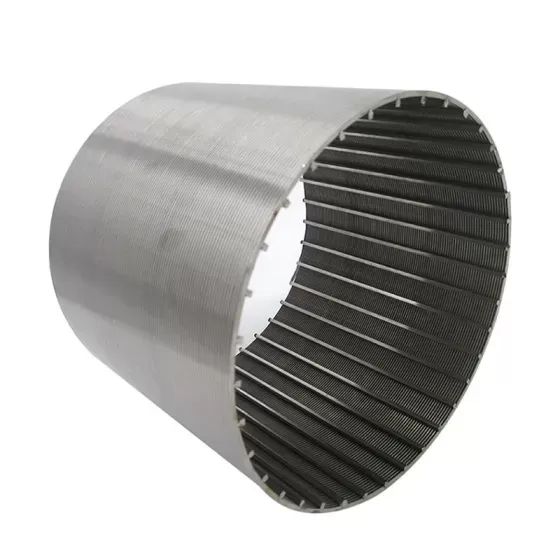

Wound V Wire Screen Tube
MAKINSAN is a leading V-wire product manufacturer in China. We offer Johnson-wrapped V-wire screen pipes in various shapes and sizes....
Category: Wedge Wire Screen
Tags: #wound, #wire, #screen, #tube
MAKINSAN is a leading V-wire product manufacturer in China. We offer Johnson-wrapped V-wire screen pipes in various shapes and sizes.

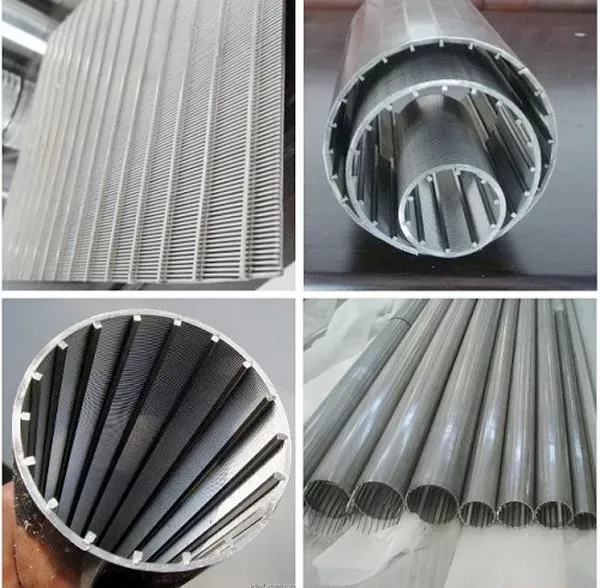

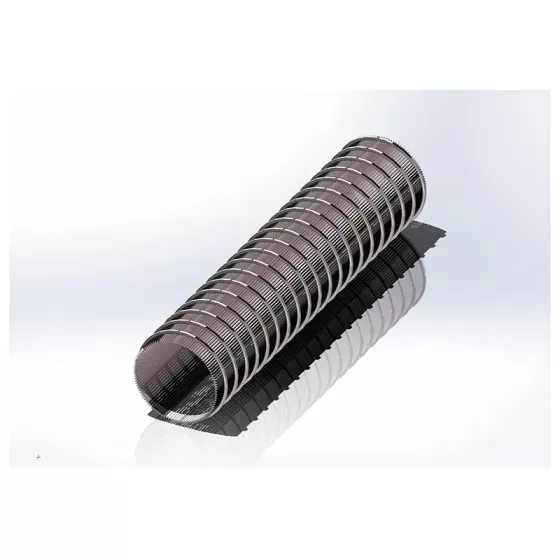

Our Wrapped V-Wire Screen Pipe combines precision profile wire with longitudinal support rods. Each wire-to-rod connection is resistance-welded to ensure durability and reliability.
Features:
Internal V-shaped slots
Wide open area
Continuous slots
The V-profile wire screen is designed to deliver exceptional performance and long service life while meeting a variety of filtration needs.
Our Wrapped V-Wire Screen Pipe is carefully designed by combining precision profile wire with longitudinal support rods. Each wire-to-rod connection is resistance-welded for durability and reliability. The result is a high-quality filtration solution that outperforms traditional alternatives.
Key Features of Wrapped V-Wire Johnson Screen Pipe:
--Internal V-shaped Slots: V-shaped slots angled toward the well interior prevent clogging by sand particles, ensuring consistent pumping and long well life.
--Continuous Slots: Unique design provides continuous slot openings along the circumference and length of the screen, maximizing open area for efficient water intake and reducing friction-induced head loss.
--Wide Open Area: Screens offer more than twice the open area of traditional slotted pipes, increasing efficiency by allowing more water to enter with minimal resistance.
--Two-Point Welding: Specially designed two-point welded V-shaped wire structure prevents clogging and blockages, ensuring uninterrupted operation.
--Robust Longitudinal Support Rods: Provide excellent pressure resistance, making our screens suitable for various applications.
Specifications of Wrapped V-Wire Johnson Screen Pipe:
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| OD Range | 19mm-2000mm | ||||||
| ID Range | 13mm-1981mm | ||||||
| Length Range | Up to 6000 mm | ||||||
| Slot Range | 20 micron to 3000 microns (Tolerance: ±5 micron) | ||||||
| Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2 | 2x3 | 2x4 | 3x5 |
| Support Rod | 1.5x2.5, 2x3 | 1.5x2.5, 2x3 | 1.5x2.5, 2x3 | 1.8x2.5, 2x3 | 2x3, 2x4, 3x5, 3x6, 3x10, 4x7 | 2x4, 3x5, 3x6, 3x10, 4x7, 5x6 | 3x5, 3x6, 3x10, 4x7, 5x6, 5x8 |
| End Finishing | Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc | ||||||
| Note | Customization available. | ||||||
Applications of Wrapped V-Wire Johnson Screen Pipe:
Industrial Filtration: Ideal for applications requiring smooth filtration and screening.
Mining Preparation: Used in mining and food processing plants for washing and screening.
Agriculture: Suitable for corn processing, ethanol, corn starch, sugar, and fertilizer production.
Wastewater Treatment: Perfect for wastewater treatment and vibrating screens.
Natural Rubber Processing: Replaces perforated mesh for static screens in rubber processing facilities.
Selection Guidelines:
1. Treated Water Volume: Consider the volume of water to be treated.
2. Pipeline Pressure: Determine the wire size based on system pressure.
3. Filtration Accuracy: Specify the required slot or filtration precision.
4. Suspended Solids Concentration: Take into account the concentration of impurities in the water.
5. Material Compatibility: Select screen material based on physical and chemical properties of the filtration medium.
6. Dimensions: Determine the length and diameter of the screen suitable for your equipment.
Consult our manufacturer and engineers for optimal filtration results, water, energy, and labor savings. They provide professional guidance, market experience, and scientific approaches to ensure the best selection for your unique requirements.
