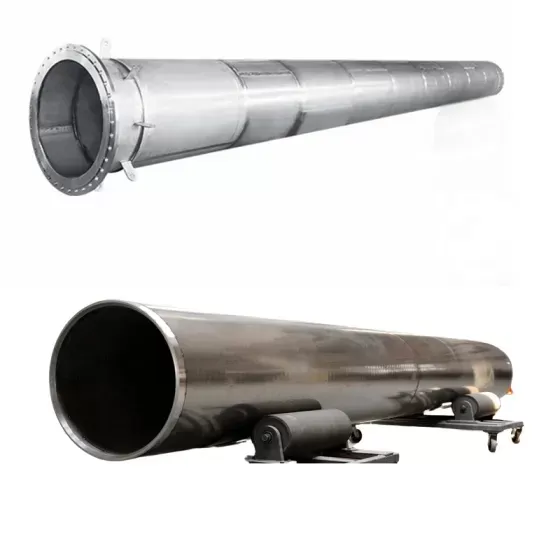

Wedge Wire Center Tube
The wedge wire center pipe / intermediate screen is a specialized internal component of reactors for efficient flow distribution and collection....
Category: Wedge Wire Screen
Tags: #wedge, #wire, #center, #tube
The wedge wire center pipe / intermediate screen is a specialized internal component of reactors for efficient flow distribution and collection. Suitable for refineries and petrochemical industries.
Applications: Catalytic reforming, styrene production, synthetic ammonia synthesis, and propane dehydrogenation.

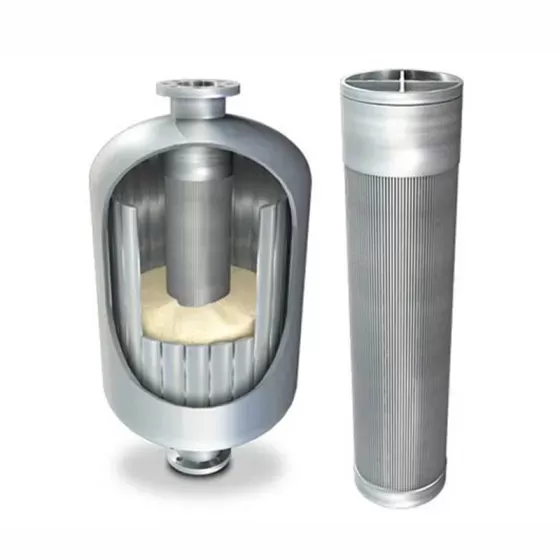

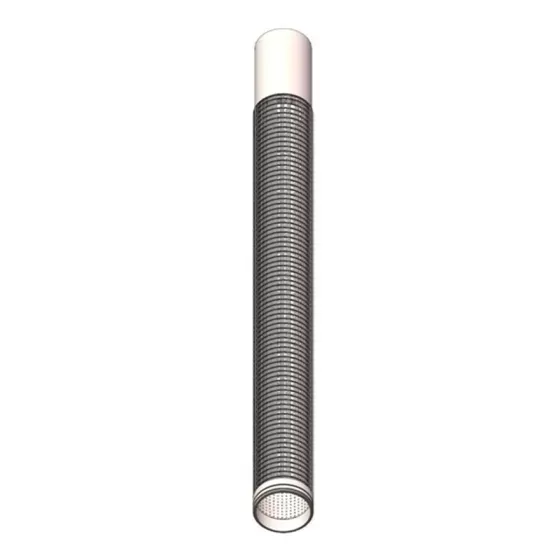

The wedge wire center pipe is a specialized internal component for effective flow distribution and collection within reactors.
The center pipe features a unique wedge wire design that provides superior filtration and support while maintaining structural integrity under high-pressure conditions. The V-shaped wire structure ensures uniform flow throughout the reactor's internal structure.
Wedge wire center pipes are commonly used in reactors that require optimized fluid flow and efficient gas-liquid or liquid-solid interactions, such as chemical reactors, fluidized bed reactors, gas-liquid reactors, and catalytic reactors.
Details for Wedge Wire Flow Reactor Internal Center Pipe

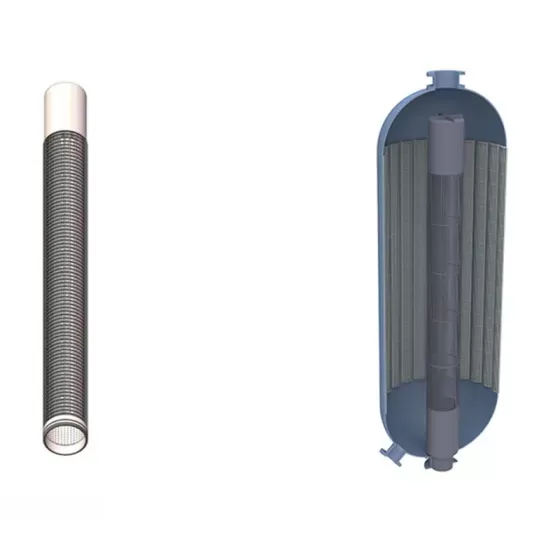

| Installation | The center pipe is generally mounted inside vertical reactors (flow reactors). Typically installed through a manhole at the top of the vessel and supported on a holder that maintains its position. |
| Purpose | To collect or distribute flow |
| Operation | The center pipe is positioned on the high temperature or high concentration side since the vessel shell experiences less stress when the high temperature and high concentration are central. |
| Flow Direction | Inward or outward |
| Application Industry | Refinery and petrochemical industry |
| Application Ranges | Catalytic reforming, styrene production, synthetic ammonia synthesis, and propane dehydrogenation |
Advantages of Wedge Wire for Reactor Internal Components
- Efficient Flow Distribution
The wedge wire design ensures optimal flow distribution within the reactor, improving reaction rates and overall performance.
- Enhanced Durability
Our center pipes are made from corrosion- and wear-resistant stainless steel, suitable even for aggressive environments. Their robust construction ensures long service life, making them ideal for high-performance reactors.
- High Flow Capacity
Wedge wire reactor internals provide necessary support to maintain high flow rates without compromising efficiency or structural integrity.
- Customizable
Special designs offer versatility, making them suitable for a variety of reactor configurations.
- Easy Maintenance
The wedge wire structure is easy to maintain and clean, resulting in reduced downtime and operating costs.
Our wedge wire center pipes allow for custom designs to meet the specific needs of any reactor installation. Whether you need a perforated wedge wire pipe or a wedge wire flow tube system, the flexibility of the design ensures seamless integration into a wide range of reactor configurations.
