Stainless Steel Wedge Wire Screen Flat Panel
Wedge wire conical centrifuge baskets are highly efficient filtration and separation solutions....
Category: Wedge Wire Screen
Tags: #stainless, #steel, #wedge, #wire, #screen, #flat, #panel

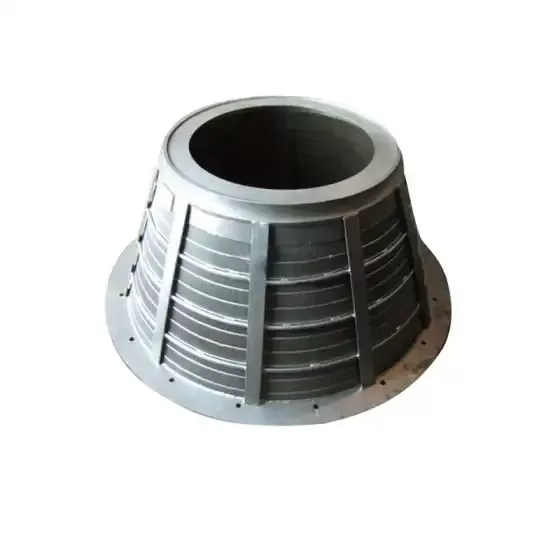

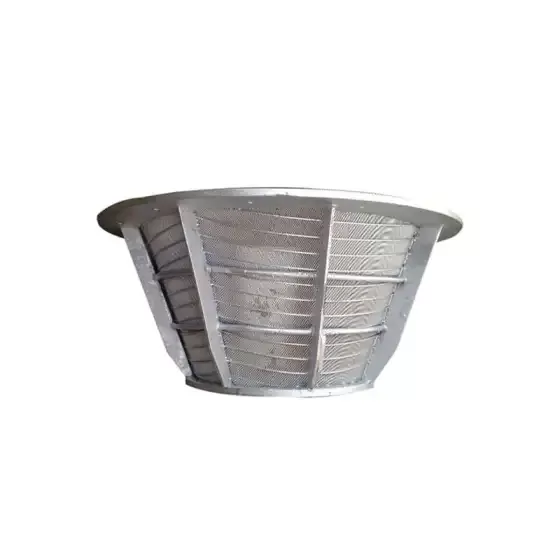

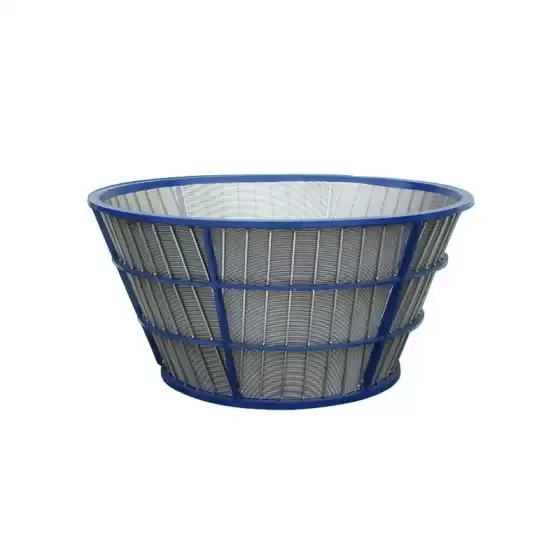

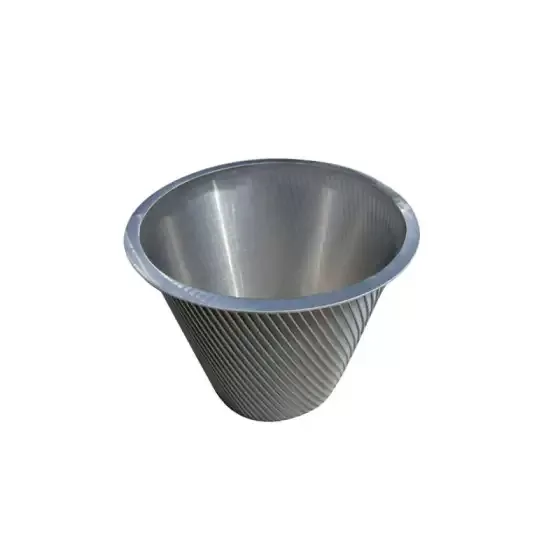

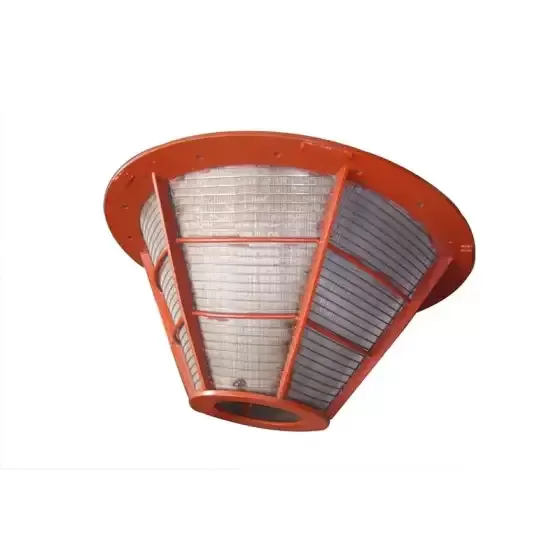

Wedge wire conical centrifuge baskets are highly efficient filtration and separation solutions. These screen baskets are widely used in various industries such as mining, coal processing, wastewater treatment, and food production.
Key Features:
▪ Conical Design
▪ High Strength and Durability
▪ Efficient Filtration and High Processing Capacity
▪ Robust Construction
▪ Non-Clogging
Also known as conical centrifuge baskets, wedge wire baskets provide highly efficient filtration and separation solutions. They are commonly used in mining, coal processing, wastewater treatment, and food production industries.
Conical centrifuge baskets are primarily designed for centrifuge machines for dewatering, separation, and classification. These baskets feature a conical shape that ensures enhanced separation efficiency and material discharge.

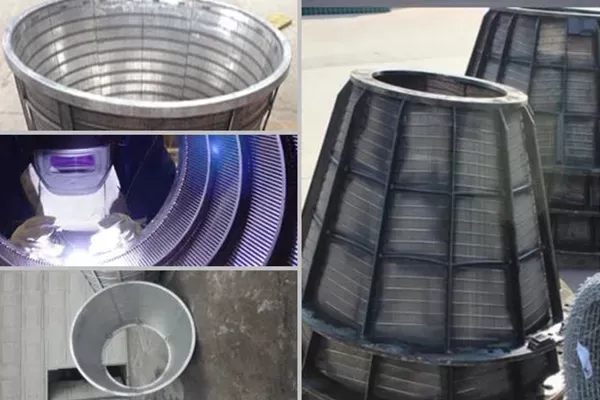

MAKİNSAN centrifuge baskets are welded with several fan-shaped wedge wire panels. The conical baskets are self-supporting structures, designed and manufactured to withstand high stresses and load conditions during multiple operations.
The centrifuge screen baskets provide exceptional durability, high open area, and clog resistance, making them ideal for demanding applications.
Features of Wedge Wire Conical Centrifuge Baskets
▪ Conical Design: The conical shape increases centrifugal force, improving dewatering and enabling smoother material discharge.
▪ High Strength and Durability: Stainless steel or other corrosion-resistant materials withstand abrasive environments and provide long-lasting performance.
▪ Efficient Filtration and High Processing Capacity: Precise slot openings between the wedge wires allow consistent particle separation, delivering superior filtration efficiency.
▪ Robust Construction: Designed to endure even in harsh industrial environments.
▪ Non-Clogging Design: The V-shaped profile wire minimizes clogging, improving performance and reducing downtime.
Specifications of Wedge Wire Conical Centrifuge Baskets
| SLOT(INCH) | LENGTH(m) | WIDTH(m) | COLLAPSE STRENGTH (PSI) | TENSILE WEIGHT (TON) | WRAP (thick*deep)(mm) | RODS (mm) |
| 0.04 | 1-6 | 0.5-2 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 0.04 | 1-6 | 0.5-2 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 0.04 | 1-6 | 0.5-2 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 0.01 | 1-6 | 0.5-2 | 399 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 0.02 | 1-6 | 0.5-2 | 370 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 0.04 | 1-6 | 0.5-2 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 0.01 | 1-6 | 0.5-2 | 206 | 11 | 3.0*5.0 | 3.8mm/50 |
| 0.02 | 1-6 | 0.5-2 | 191 | 11 | 3.0*5.0 | 3.8mm/50 |
| 0.04 | 1-6 | 0.5-2 | 167 | 11 | 3.0*5.0 | 3.8mm/50 |
Note:
Customizable: Available in various slot sizes, wire profiles, and dimensions to meet specific operational requirements.
Applications of Wedge Wire Conical Centrifuge Baskets
- Coal Screening and Dewatering
- Wastewater Treatment
- Food and Beverage Industry
- Mining and Mineral Processing
- Chemical and Pharmaceutical Industry
- Salt and Chemical Plants
- Sugar Processing
- Starch Processing
- Steel Chip Centrifuges
- Oil and Gas Industry
- Pulp and Paper Industry
