Special Water Treatment Filter Nozzle for Ion Exchange
- ...
Category: Wedge Wire Screen
Tags: #special, #water, #treatment, #filter, #nozzle, #for, #ion, #exchange

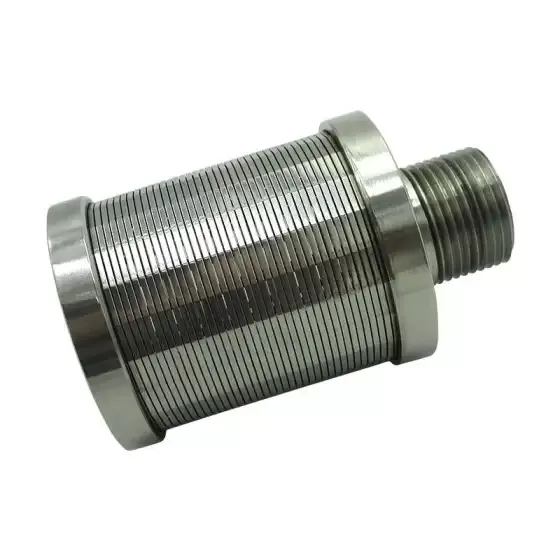

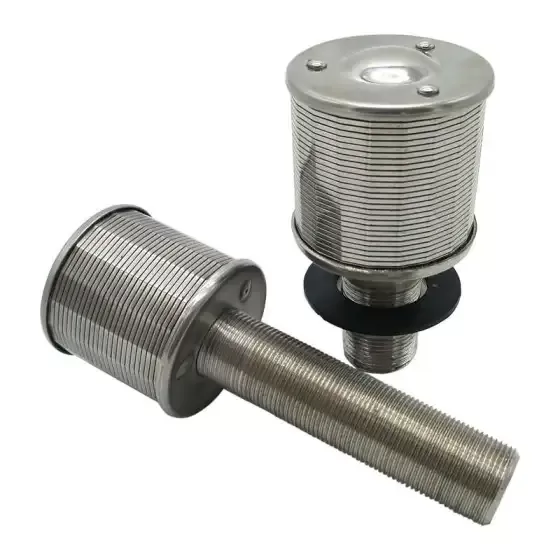

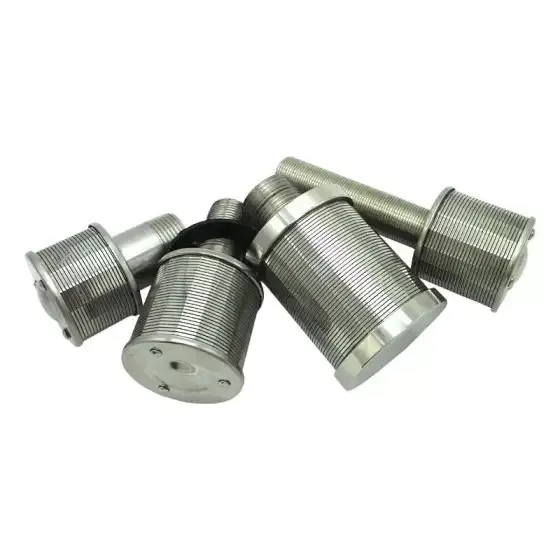

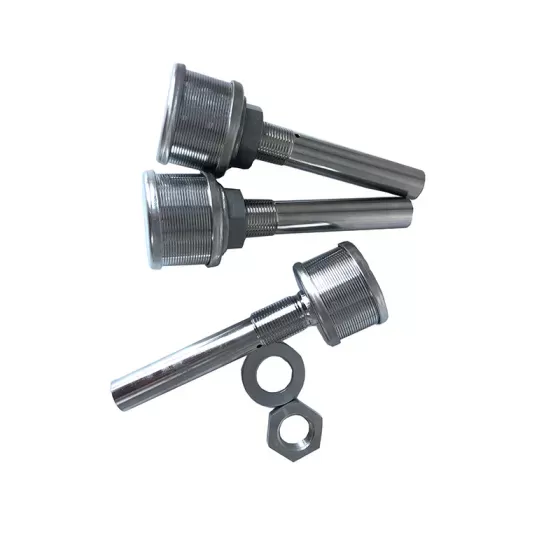

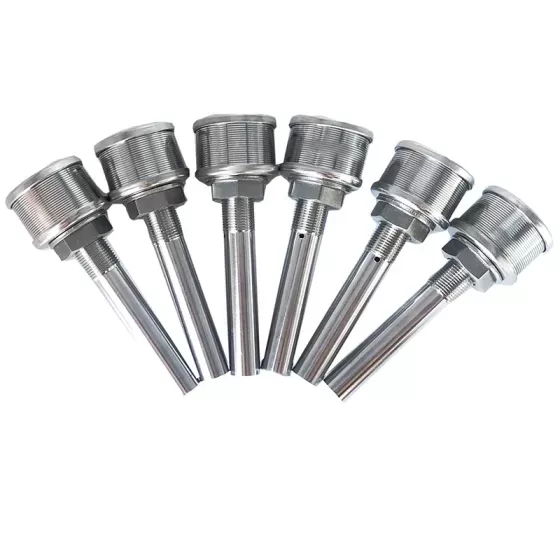

Special Water Treatment Ion Exchange Filter Nozzle
The water treatment ion exchange filter nozzle is made of stainless steel wedge wires, providing superior strength, corrosion resistance, and long service life. The filter nozzle is designed to prevent the loss of ion exchange resin while maintaining high flow efficiency. It is used in:
-
Ion Exchange Systems
-
Water Softening Systems
-
Desalination Plants
The water treatment ion exchange filter nozzle is a specialized component used in water treatment plants, wastewater treatment facilities, and industrial filtration systems. It is designed to maintain high flow efficiency while preventing ion exchange resin loss. This specialized filter nozzle is commonly used in:
-
Municipal and industrial water softening systems
-
Desalination plants and reverse osmosis (RO) pre-treatment
-
Chemical and pharmaceutical water treatment
-
Wastewater treatment plants (ETP) and wastewater filtration
Features of Wedge Wire Water Treatment Filter Nozzles
| Type | Slot (mm) | D (mm) | H (mm) | L (mm) | Thread / Fittings | Flow Rating (m³/h) |
|---|---|---|---|---|---|---|
| MAKİNSAN-0.5 | 0.25 | 45 | 45 | 90/request | M, NPT, G, PT (BSPT), Z, BSP, request; SS Gasket, Rubber Gasket, Nut, request | 0.5 |
| MAKİNSAN-1.0 | 0.25 | 53 | 45 | 90/request | — | 1 |
| MAKİNSAN-1.5 | 0.25 | 57 | 45 | 90/request | — | 1.5 |
| MAKİNSAN-2.0 | 0.25 | 57 | 55 | 100/request | — | 2 |
| MAKİNSAN-2.5 | 0.25 | 70 | 55 | 100/request | — | 2.5 |
| MAKİNSAN-3.0 | 0.25 | 70 | 70 | 120/request | — | 3 |
Note:
-
All dimensions above are standard; custom sizes are possible.
-
MAKİNSAN can assist in designing according to application and requirements.
-
Nozzles can be customized within the following ranges:
-
Slot spacing: 0.05–2 mm
-
Dimensions: Diameter, screen height, length can be produced according to actual requirements and application
-
Thread: Can be customized according to requirement
-
Applications of Stainless Steel Water Treatment Filter Nozzles
-
Ion Exchange Resin Filters: Used in softening, deionization, and demineralization systems to retain resin beads.
-
Water Softening Systems: Effectively removes ions that cause hardness.
-
Desalination Plants: Supports pre-filtration and final treatment in reverse osmosis (RO) systems.
-
Industrial Filtration: Suitable for chemical processing, food and beverage, and pharmaceutical industries.
Advantages of Wedge Wire Water Treatment Ion Exchange Filter Nozzles
-
High Durability and Corrosion Resistance:
Nozzles are made from 304, 316, 316L, and 904L stainless steel, resistant to harsh conditions such as chemical exposure and high-pressure environments. -
Precise Filtration and Resin Retention:
The V-wire nozzle filter ensures accurate filtration, preventing media loss while maintaining maximum flow efficiency. -
Customizable Design:
Special stainless steel filter nozzles can be manufactured in various sizes, slot openings, and flow rates to meet specific system requirements. -
Efficient Backwashing and Low Maintenance:
The Johnson screen nozzle provides effective backwashing, reducing clogging and extending service life. -
Energy Efficiency:
Smooth surfaces and well-calibrated slots minimize pressure drop, enhancing water treatment efficiency.
For customized solutions tailored to your water treatment needs, choose a durable, corrosion-resistant stainless steel filter nozzle designed for optimal filtration performance.
