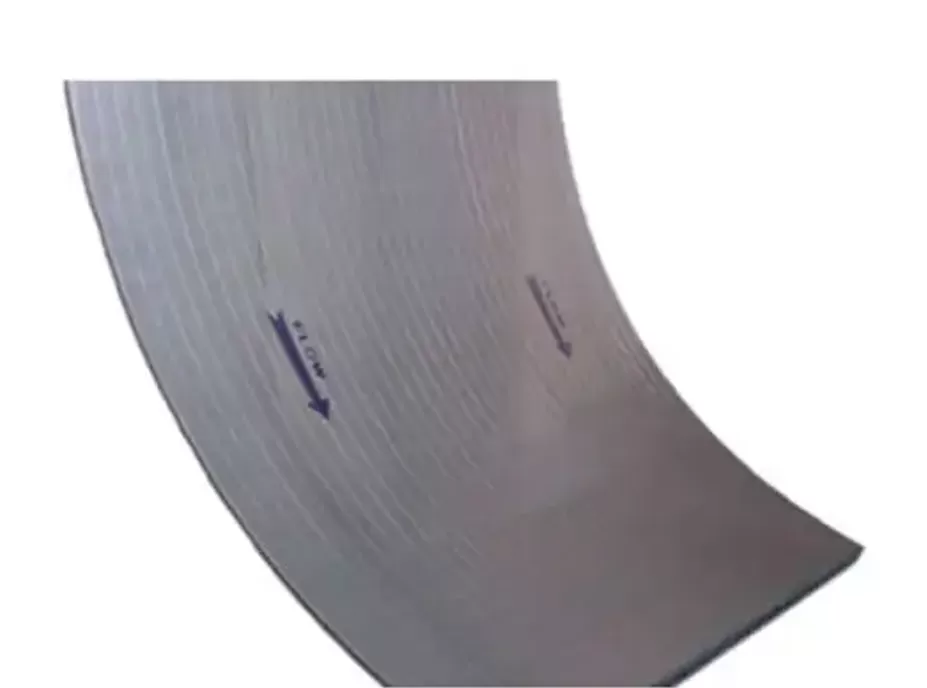

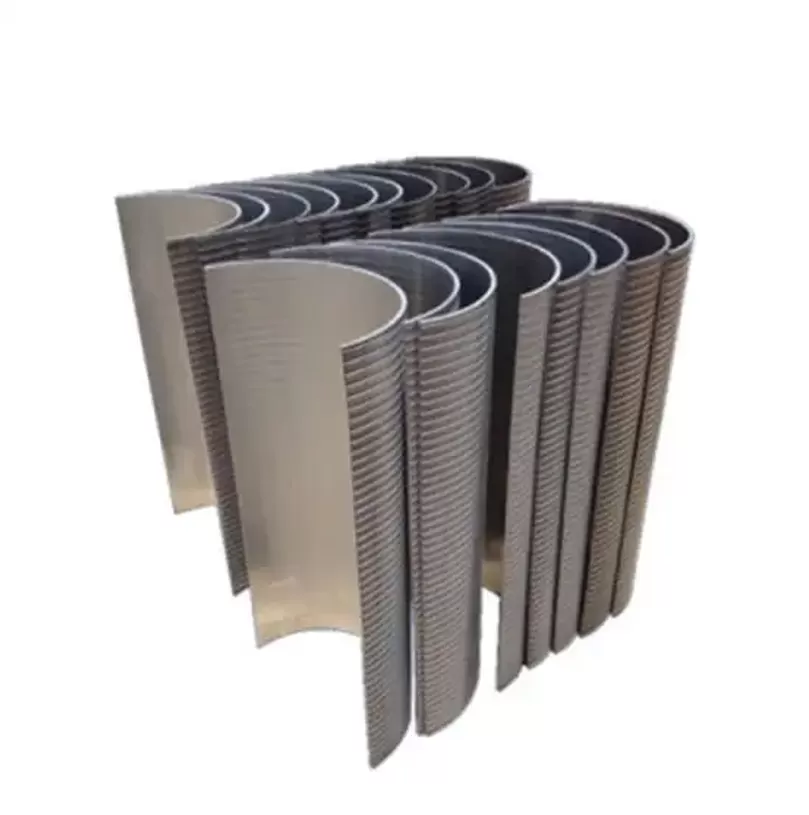

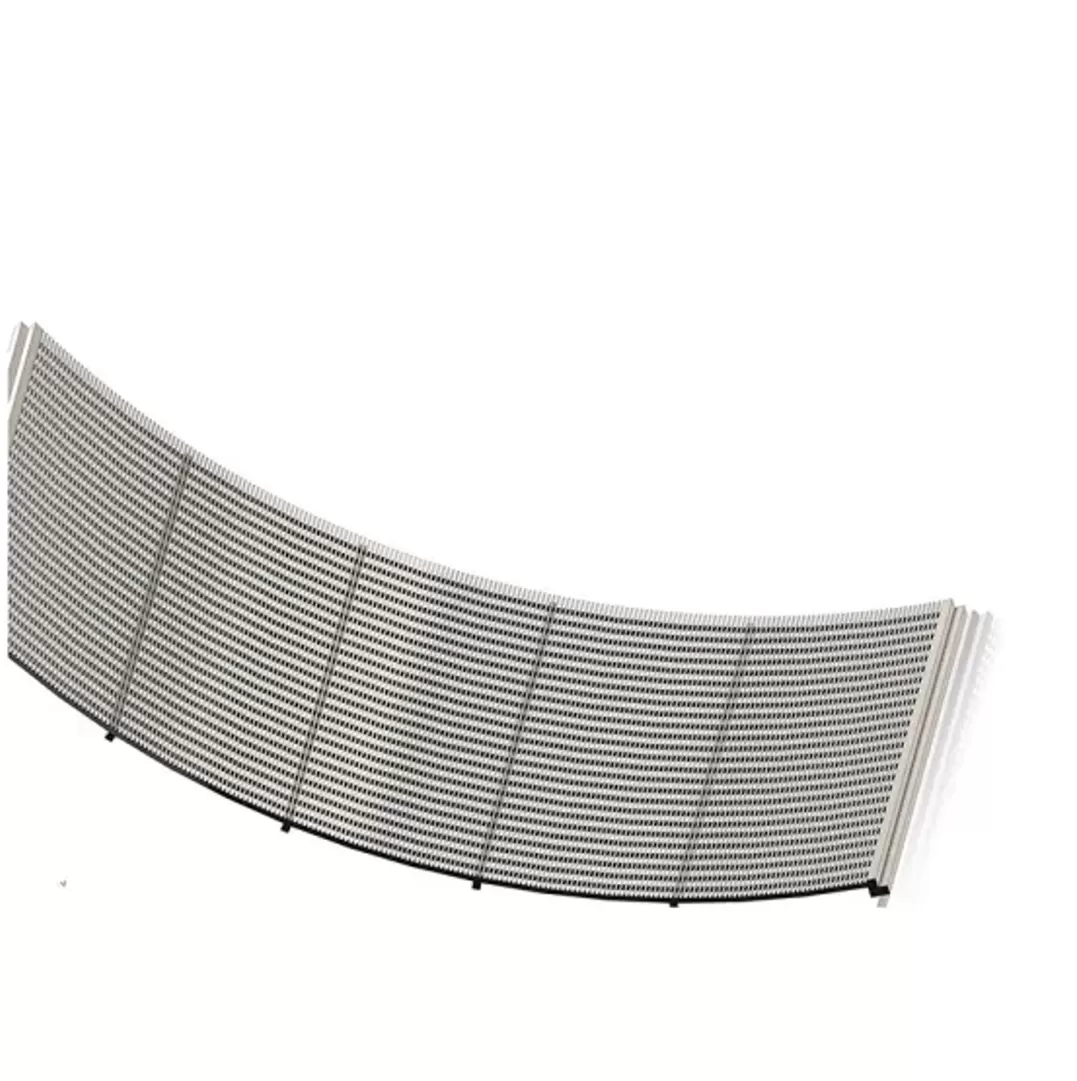

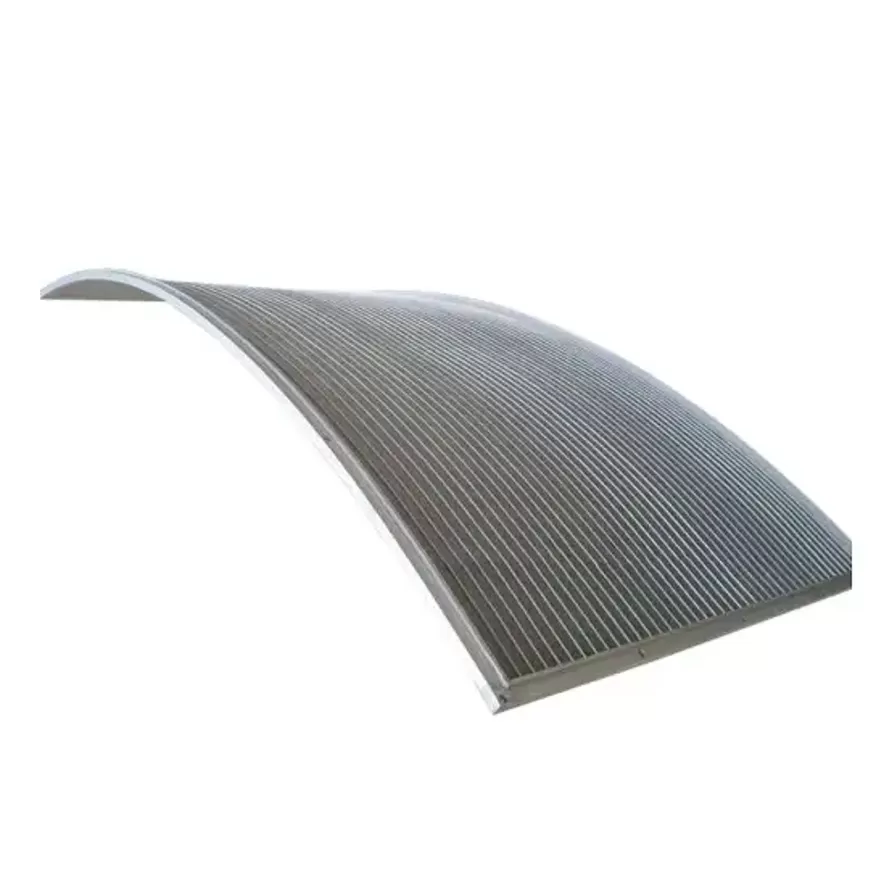

Wedge Wire Pressure-Curved Screen
The wedge wire pressure-curved screen is also referred to as an arc screen, dewatering screen, DSM screen, parabolic screen, curved screen, and more. Dimensions, wire diameter, slot width, and frame structure can be customized.
Our pressure-curved screens are welded with wedge wire and support rods. The materials used include 304, 304L, 304HC, 316, 316L, 321, 430 stainless steel, or others upon request.
Wedge Wire Pressure-Curved Screen Manufacturer and Factory
Are you looking for a high-quality wedge wire pressure-curved screen? Our advanced filtration solution ensures efficient and reliable performance. Explore our range of screens for various industrial applications.
Features of Wedge Wire Pressure-Curved Screen
-
Strong, pressure-resistant, and durable.
-
Low maintenance costs. The wedge-shaped wire structure prevents particle clogging, and the stainless steel construction is corrosion-resistant.
-
Wedge wire with V-shaped design provides strong self-cleaning capability.
-
Easy to install.
-
Customizable.
Applications of Wedge Wire Pressure-Curved Screen
The wedge wire pressure-curved screen plays an important role in the starch screening and filtration process.
Wedge wire pressure-curved screens are widely used in various areas of life, including water treatment, mineral processing, coal preparation plants, refineries, petrochemicals, and more. Pressure screens are commonly employed in municipal and industrial wastewater treatment. They are also used in the starch industry for fiber removal.
Features of Wedge Wire Pressure-Curved Screen
| Specification (wedge wire): | Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Specification (support rod): | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30Round: From 2.50mm to 6.0mm |
| Note: other specifications available as per request | |
| Slot size | 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request. |
| Material: | galvanized low carton (LCG), stainless steel (304,316 etc.) |
| Length | up to 6 meters. |
| Width | from 25mm to 1200mm. |
| Radian | |
| End connection | Plain beveled ends, flanged or threaded couplings |
