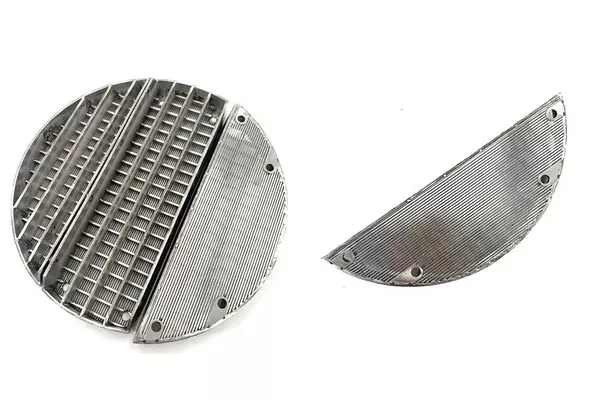

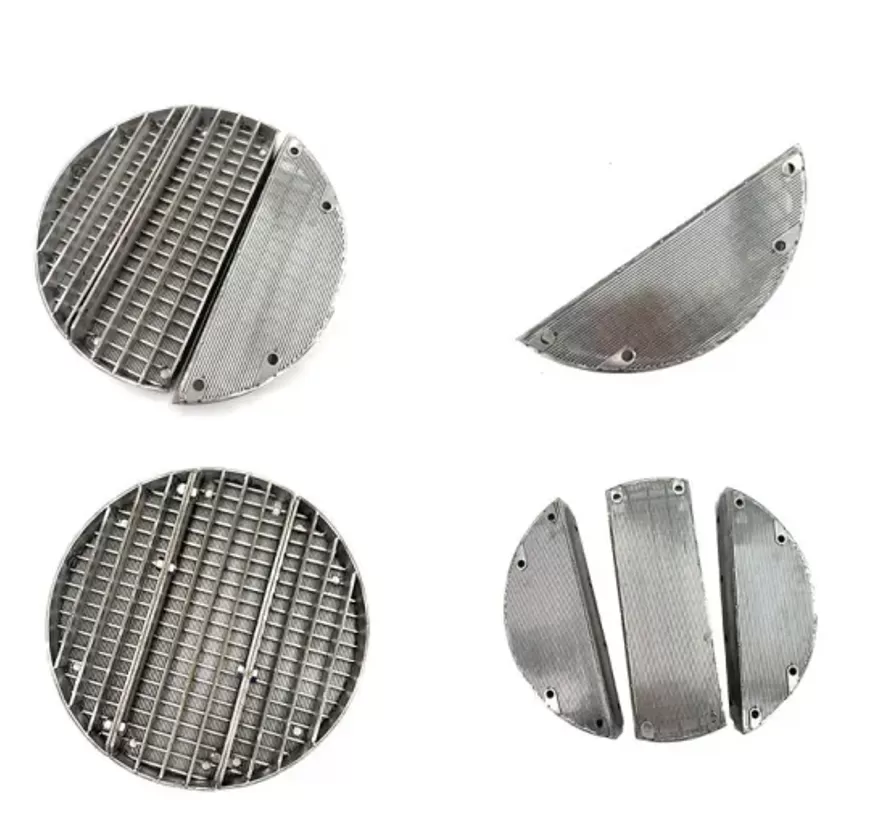

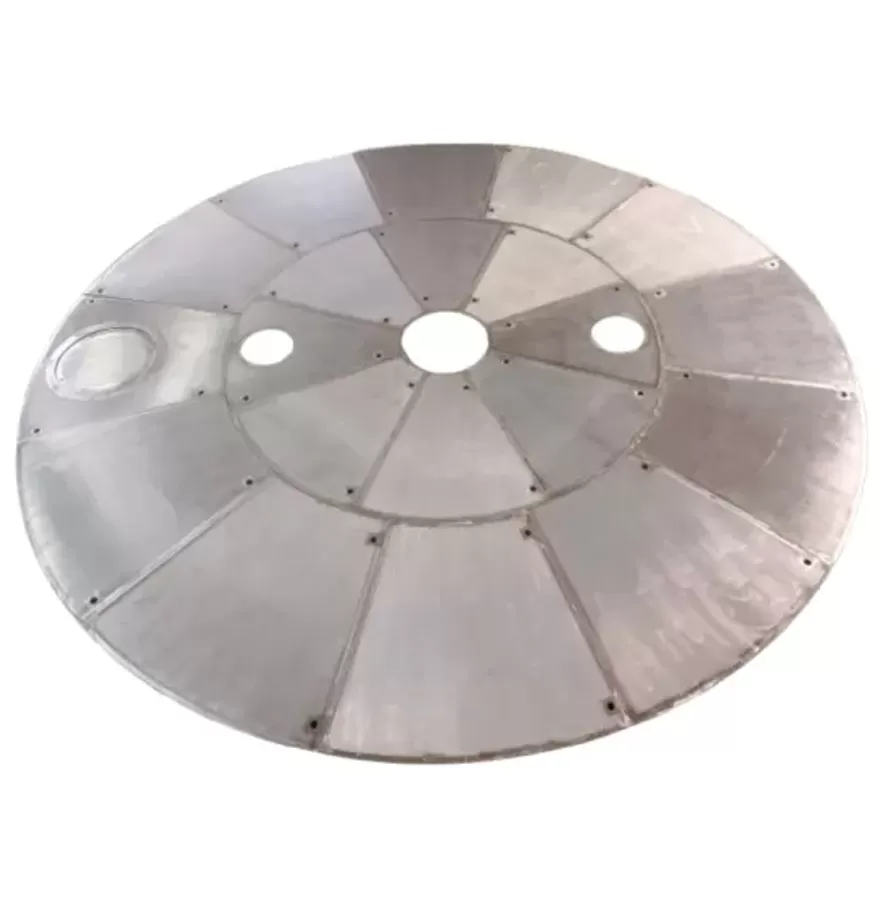

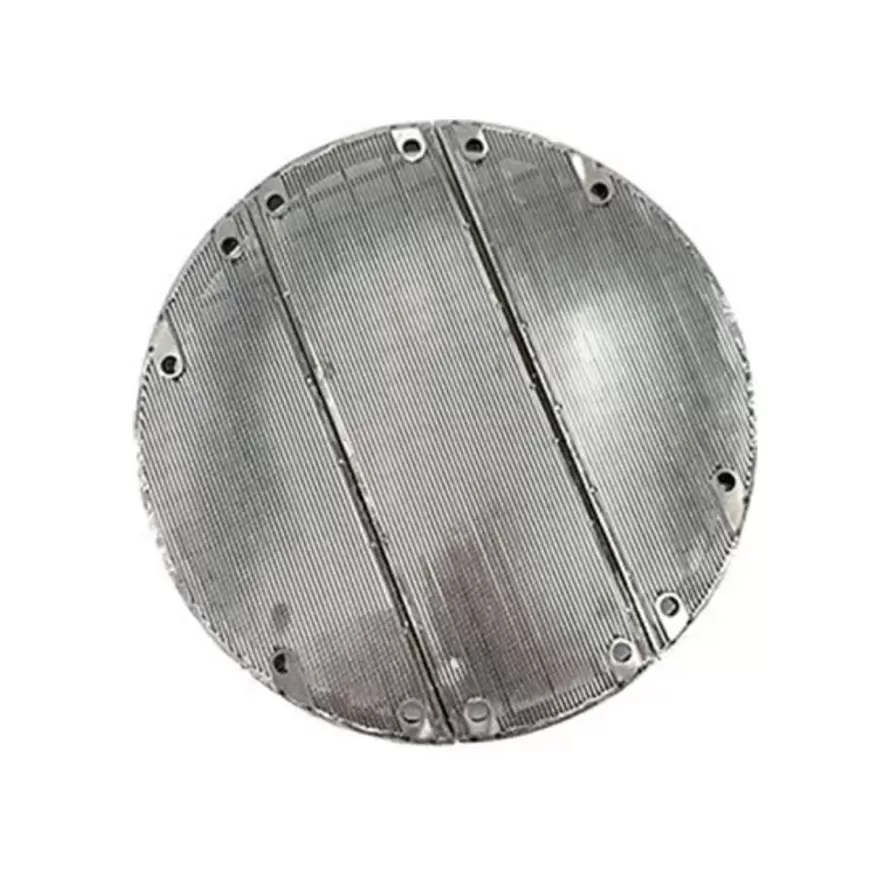

The Johnson wire catalyst support grid is made from high-quality stainless steel material that is resistant to extreme temperatures and corrosive environments. The wedge wire structure maximizes open area while allowing high flow rates, ensuring uniform flow throughout the entire catalyst bed and preventing clogging.
- Enhanced durability and long service life
- Increased efficiency in catalyst bed support
- High resistance to corrosion and extreme temperatures
- Flow optimization

The Johnson wire catalyst support grid is designed to improve the performance and longevity of catalyst beds in high-demand applications such as petrochemical, hydrocracking, refining, and chemical processing.

Our support grid is manufactured using precisely engineered Johnson wire technology, providing a highly stable structure for catalyst support. It minimizes catalyst loss risk and maintains efficient flow distribution.

The Johnson wire catalyst support grid is made from high-quality stainless steel resistant to extreme temperatures and corrosive environments. Its unique Vee wire and wedge wire structure maximizes open area while allowing high flow rates, ensuring uniform flow across the entire catalyst bed.

This reliable wedge wire support grid supports efficient filtration and separation necessary for optimal catalyst activity and reduced downtime. Whether used for catalyst protection, retention, or flow optimization, this versatile grid delivers dependable performance consistent with industry standards.

Fully customizable, the Johnson wire catalyst support grid can be tailored to specific operational needs, including material selection, grid thickness, and mesh size.
- Materials: Stainless steel 304/316 alloys and other high-durability materials.
- Wire Thickness: Typically ranges from 0.5 mm to 5 mm, customizable per application.
- Mesh Size and Open Area: Customizable to meet specific flow and filtration requirements.
- Temperature Resistance: Capable of withstanding extreme temperatures, suitable for hydrocracking and petrochemical processes.

Advantages of Johnson Wire Catalyst Support Grids

- Enhanced durability and long service life
- Increased efficiency in catalyst bed support
- High resistance to corrosion and extreme temperatures
- Flow optimization
- Reduced maintenance and operating costs

Applications of Johnson Wire Catalyst Support Grids

Catalyst support grids are essential components of vessel internals and process towers.
- Catalyst bed support grids for petrochemical and refinery industries
- Reactor internals for carbon filters
- Hydrogenation reactors
- Sulfur removal reactors
